Prime Seating I-shift Adaptor

Volvo I-shift adaptor from Prime Seating

For installation on Prime Seats.  Also able to install on other maker seats with minimum modification.

Installation Instructions:

1) Remove Bottom Cushion out from bottom frame, Use narrow screw driver and push into both side hole(200 model) and pull it front side while tilt up both side drivers. There are little bit different procedure for different models. Prime 300, 400, and 600 models will be removed bottom cushion from the driver side. Extend cushion first, then push narrow driver to 2nd hole and hold and pull extended cushion lever while tilt up your screw driver. For Touring comfort series se(Include TCN300CL & TCN500CL), it is everything same procedure as Prime 300, 400, and 600 models. Only difference is use right side latch, which is passenger side hole.

2) Remove right side plastic cover. There are 4 screws need to be removed and plastic cover will be out.

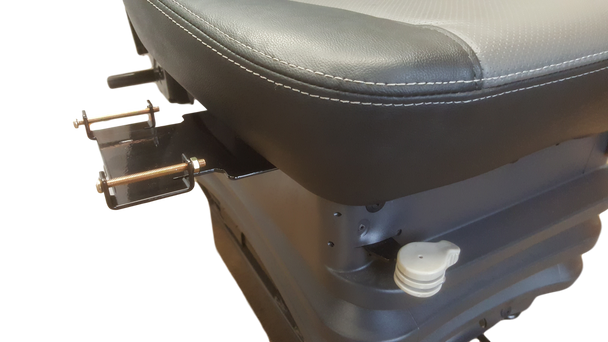

3) Locate VA005 into top of side bottom frame as you can see, use bolt and nuts for hold adaptor and use 2 small screws to guide both side of adaptor.  On our adaptor, there is cable guide and comes with two i-shifter holding bolts and nuts to hold i-shifter.
